Introduction
The YORNEW's Compact Mill- VMC300 offers a compact design with high precision, making it ideal for prototyping and manufacturing small, intricate 2D and 3D components commonly used in communication, aerospace, medical, dental and education sectors. Its size allows it to fit into standard freight elevators, and it can be effortlessly relocated using a pallet jack or equipment dolly.

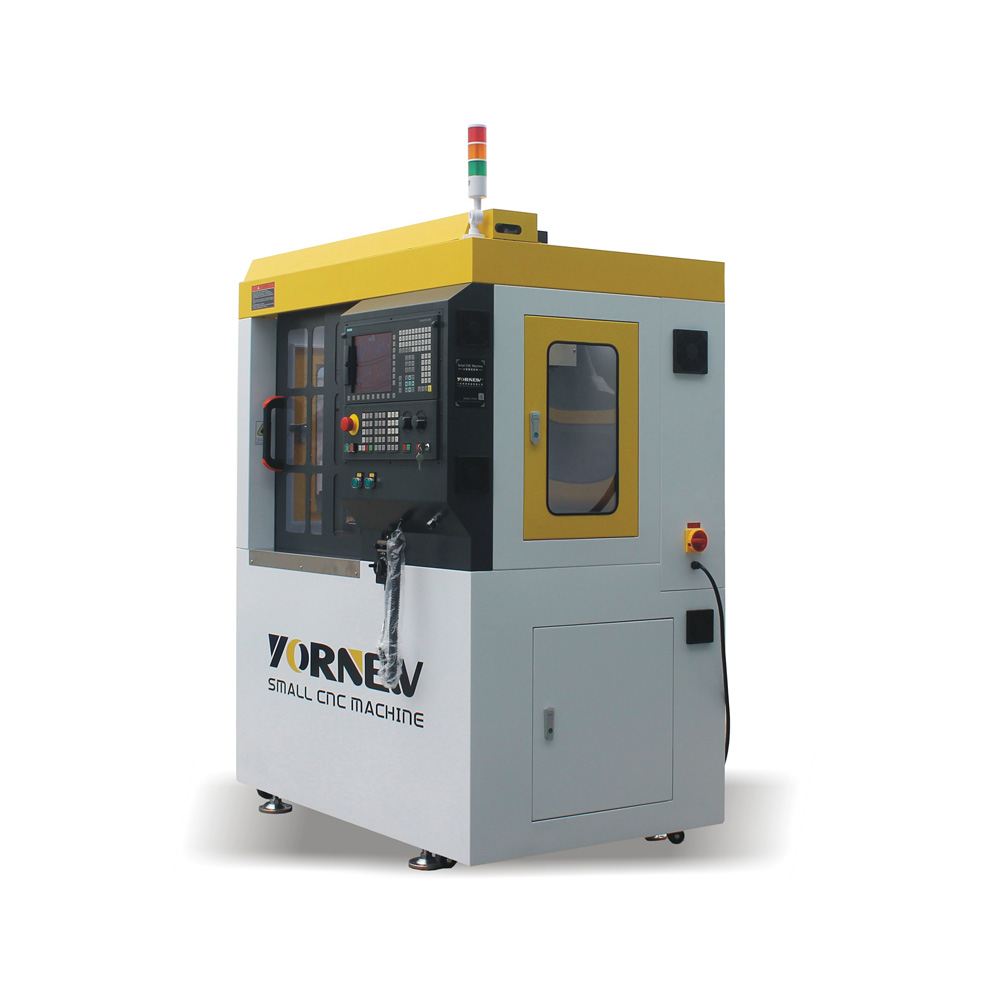

YORNEW's VMC300-828D Compact Machining Center
A small CNC milling machine, like the YORNEW VMC300, is perfect for prototyping and small-scale production projects. Its compact size allows for easy setup in limited spaces while still maintaining high precision and power. With its versatile capabilities, you can quickly iterate designs and produce accurate parts in a cost-effective manner.

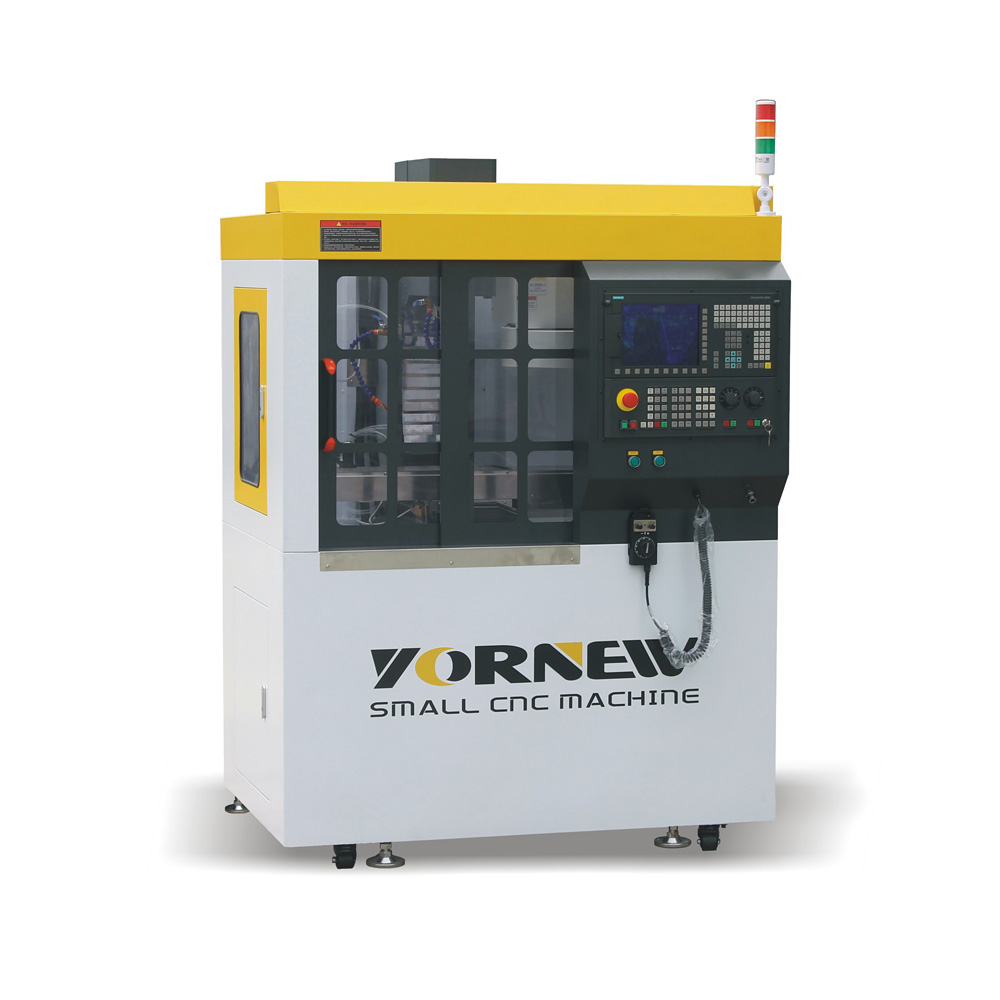

YORNEW's Tools Small CNC Milling Machine
The small YORNEW VMC300 CNC machine offers a small footprint with unprecedented speed. It provides full CNC capabilities in a compact space, ensuring high processing quality. Moreover, this efficiently competent CNC mill comes at an affordable price. Due to its excellent competency and high affordability rates, it is the right match for all CNC cuttings at low unit costs.
Prototyping and Small-Scale Production
A small CNC milling machine, like the YORNE VMC300, is perfect for prototyping and small-scale production projects. Its compact size allows for easy setup in limited spaces while still maintaining high precision and power. With its versatile capabilities, you can quickly iterate designs and produce accurate parts in a cost-effective manner.
Rapid Prototyping: Bring your ideas to life quickly and efficiently
1.Create functional prototypes in a fraction of the time compared to traditional manufacturing methods
2.Test and refine designs before committing to large-scale production
Small Batch Manufacturing: Produce limited quantities of products with ease
Efficiently manufacture small runs of products, reducing waste and costs
Respond quickly to market demands and customer preferences

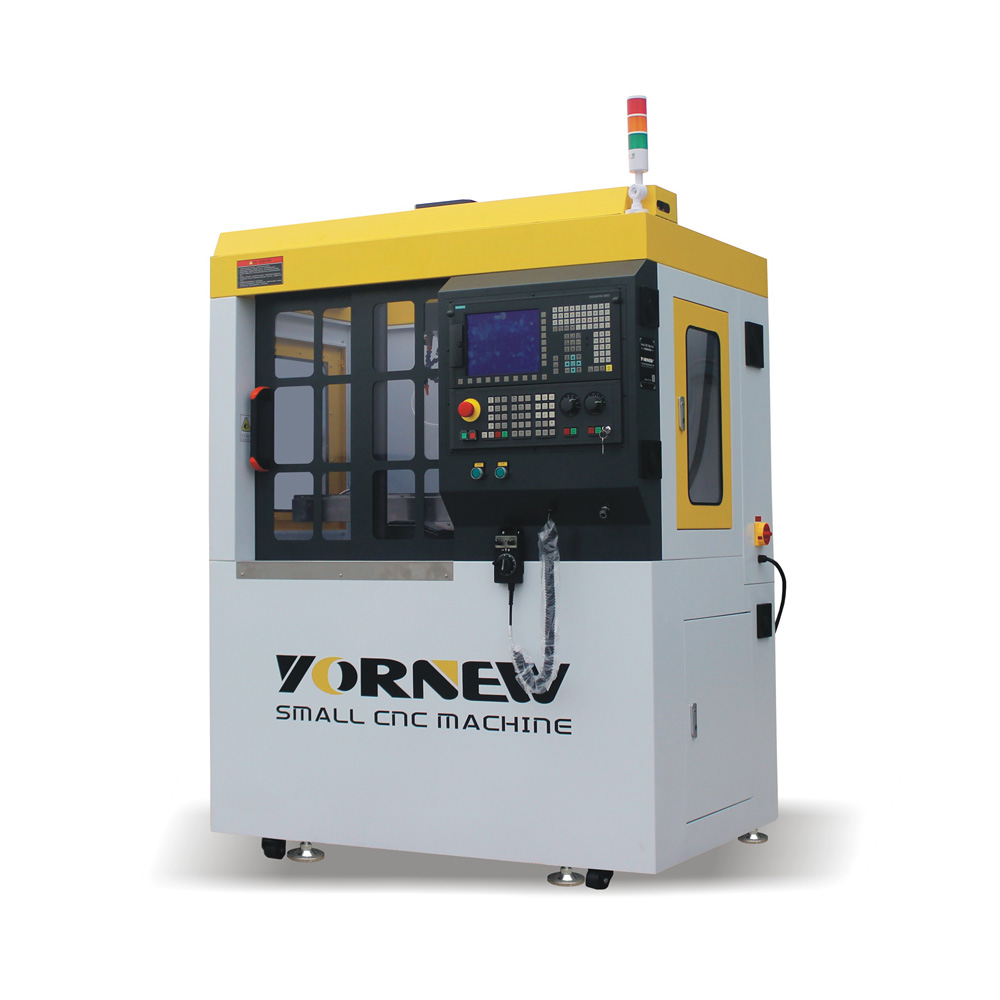

YORNEW's Compact Machining Center
Key Highlights:
1.Equipped with a high-rpm spindle ranging from 100-24,000 RPM
2.Full-featured, SINUMERIK 828D/ Fanuc control
3.Powered by Auto Tool Changer ISO 20 for enhanced productivity while minimizing downtime
4.Completely enclosed, featuring steel guards and shatter-resistant, multi-layer windows, ensuring operators' protection
5.The VMC300 is accompanied by a standard one-year warranty
Technical parameters
Positioning accuracy: 0.02mm
Repeatability accuracy: 0.01mm
X axis travel: 320mm
Y axis travel: 220mm
Z axis travel: 320mm
Spindle taper ISO: 20
Automatic tool change system(ATC): 10 Tools
Pneumatic supply:0.6 MPa
Tool DIA.range:1-13mm
Standard Size Collet: 1-13mm
Control system:SINUMERIK 828D
Spindle Power:2.2kw
Spindle speed 100-24000rpm
Motor Type: XYZ axis AC Servo
Rapid movement in X /Y/Z Axis: 1-8000mm/min
Feed rate in X/Y/Z Axis: 1-4000mm/min
Power of X/Y/Z Axis: AC Servo 750W
Transmission: ball screw
guide rail: High-precision linear guide
Table size: 550*180mm
Number of T-slots: 3
Width of T-slot: 12mm
Table structure: Full cast iron
Power: 380VAC
Weight(NW/GW): 650/700kg
Overall dimension: 1360*990*1800mm
Packing size: 1400*1050*2000mm
